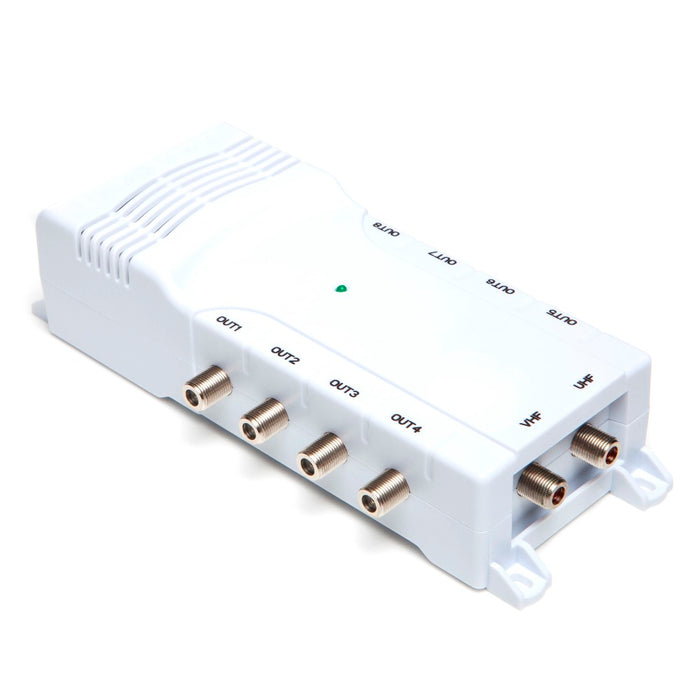

Antiference RemoteLink 2 Input 8 Output TV Aerial Distribution Amplifier with 4G/LTE Filter and Sky Bypass | DA280LTE
Cheaper elsewhere? Our Pricematch Promise
Product Description
Feed eight rooms from one aerial without losing the picture - and keep Sky's remote eyes working
Every time you split an aerial feed you lose signal, and cable runs lose more. Split one aerial eight ways without an amplifier and the far rooms get a picture that breaks up. The DA280LTE is a 75 Series distribution amplifier that takes two inputs - typically UHF aerial and VHF/DAB radio - and drives eight fully screened F-type outputs at 10dB of gain, which is what replaces the loss and gets a clean signal to every room. It has DC pass for Sky distribution, so a remote eye can still control the box from another room, and built-in 4G/LTE filtering to reject the mobile-network interference that sits right beside the TV band.
2 inputs, 8 outputs
Separate UHF and VHF inputs let you combine TV and radio onto one distributed feed, then send it to eight rooms.
10dB gain
10dB (+/-2%) of gain replaces the signal lost to splitting and long cable runs - the difference between eight working outlets and four.
Built-in 4G/LTE filtering
Mobile networks operate immediately adjacent to the TV broadcast band and are a common cause of sudden pixellation. The LTE filter rejects that interference at the amplifier.
DC pass for Sky distribution
Passes DC and powers remote eyes, so a Sky box in the sitting room can still be controlled from a bedroom - the feature that makes whole-house Sky distribution work.
9V Digi-box control
Provides the 9V needed to control a Sky Digi-box from a remote location.
Fully screened with F connectors
A fully screened housing with professional F-type connections keeps interference out of the amplifier itself.
LED indicator
A power LED so you can see at a glance that the unit is live - the first thing to check when an outlet goes dead.
Energy-efficient PSU with fitted plug
Supplied with an energy-efficient power supply and a fitted BS1363 mains plug, ready to use.
Features
- 2 input, 8 output TV aerial distribution amplifier
- UHF and VHF inputs for TV and radio
- 10dB (+/-2%) gain
- Built-in 4G/LTE interference filtering
- DC pass for Sky distribution systems
- Powers remote eyes for 9V Digi-box control
- Fully screened housing with F-type connectors
- LED power indicator
- Energy-efficient PSU with fitted BS1363 mains plug
Specifications
Model
Antiference RemoteLink DA280LTE (75 Series)
Inputs
2 (UHF and VHF)
Outputs
8
Gain
10 dB (+/-2%)
LTE / 4G filtering
Built in
DC pass
Yes - for Sky distribution
Remote eye power
Yes, 9V Digi-box control
Connectors
F-type, fully screened
Indicator
LED
Power supply
Energy-efficient PSU, fitted BS1363 mains plug
Supply voltage
230 V
Signal types
VHF / UHF, digital and analogue, radio and TV
Application
Domestic multi-room distribution
Package Contents
Antiference DA280LTE distribution amplifier x1
Power supply with fitted BS1363 plug x1
Instruction leaflet x1
