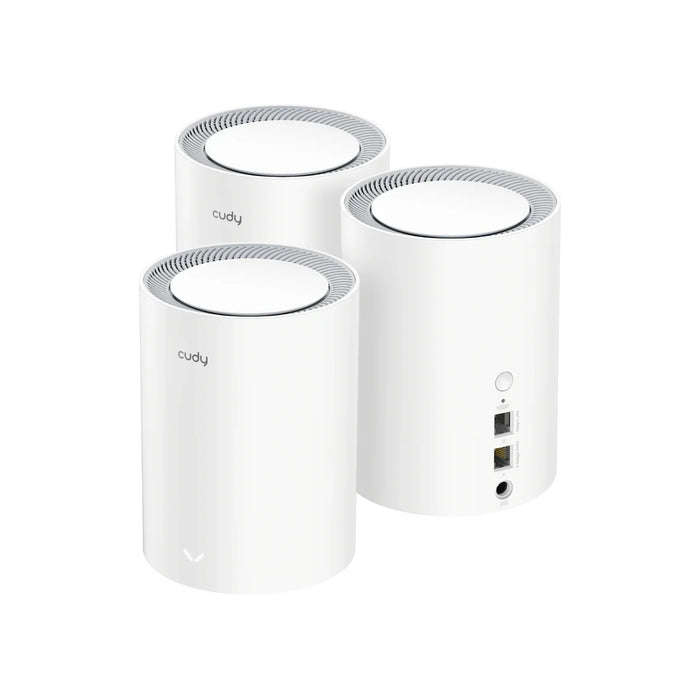

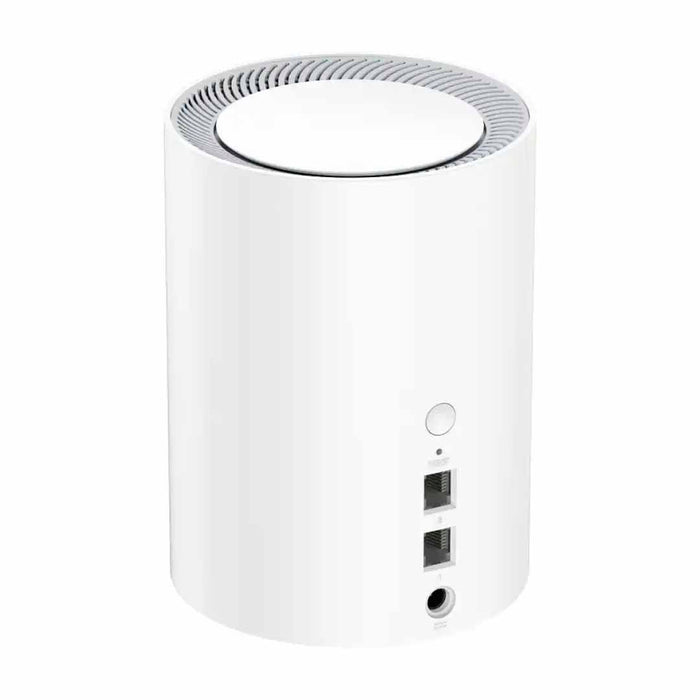

Cudy M3000 AX3000 Dual Band Wi-Fi 6 Whole Home Mesh System with 2.5 Gigabit WAN - 3 Pack, White | M3000(3-PACK)

Product Description

Three-node Wi-Fi 6 mesh with a 2.5-gigabit WAN port - for the broadband you are actually paying for

If your broadband is faster than a gigabit, a standard router is the bottleneck. The Cudy M3000 puts a 2.5Gbps multi-gigabit WAN port on the main node, so a 2-gigabit fibre connection reaches the network intact instead of being capped at 1,000Mbps. Three nodes then cover up to 7,000 square feet as a single seamless network - one name, one password, and devices hand over between nodes as you walk around rather than clinging to the weakest signal. Each node runs AX3000 dual-band Wi-Fi 6 at 2402Mbps on 5GHz plus 574Mbps on 2.4GHz, driven by a 1.3GHz dual-core processor, and the system is rated for more than 200 connected devices. Ethernet backhaul is supported if you have cable between rooms.

2.5Gbps multi-gigabit WAN
A 2.5Gbps WAN port means a broadband package above 1 gigabit actually reaches your network. On a standard gigabit router, everything above 1,000Mbps is simply lost.

AX3000 dual-band Wi-Fi 6
2402Mbps on 5GHz and 574Mbps on 2.4GHz, with 160MHz channel width, MU-MIMO and OFDMA - so many devices share the air efficiently instead of queueing.

Three-node seamless mesh
Up to 7,000 sq ft covered as one network with one SSID. Devices hand over between nodes automatically as you move through the house.

Ethernet backhaul supported
If you have Ethernet between rooms, the nodes will use it for the link between them and keep the whole of the wireless capacity for your devices.

1.3GHz dual-core processor
A Cortex-A53 dual-core at 1.3GHz in each node - enough to handle routing, VPN and 200+ connected devices without choking.

Built-in VPN server and client
WireGuard, OpenVPN, PPTP, L2TP and Zerotier are supported - so you can reach your home network securely from outside, or route the whole house through a VPN.

WPA3 security
The current Wi-Fi security standard, with app-based management and parental controls.

Replaces router and extender
One system replaces the ISP router and any extenders, which is what removes the dead spots and the second network name.

Features

• 3-pack Wi-Fi 6 mesh system covering up to 7,000 sq ft
• AX3000 dual band: 2402Mbps (5GHz) + 574Mbps (2.4GHz)
• 2.5Gbps multi-gigabit WAN port for sub-gigabit-plus broadband
• 1 x gigabit Ethernet port per node
• 1.3GHz dual-core Cortex-A53 processor per node
• Supports 200+ connected devices
• Ethernet backhaul supported
• VPN server and client: WireGuard, OpenVPN, PPTP, L2TP, Zerotier
• WPA3 security with app management and parental controls
• 160MHz channel width, MU-MIMO and OFDMA

Specifications

Model
Cudy M3000 (3-Pack), V2
Colour
White
Wi-Fi standard
Wi-Fi 6 (802.11ax/ac/a/b/g/n)
Wi-Fi speed
AX3000 - 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Channel width
Up to 160 MHz
MU-MIMO
Yes
Antennas
5 internal per node
Chipset
MT7981BA + MT7976CN + RTL8221B
Processor
1.3 GHz dual-core Cortex-A53
WAN port
1 x 2.5 Gbps multi-gigabit
LAN port
1 x gigabit Ethernet
Ethernet backhaul
Supported
Coverage
Up to 7,000 sq ft (3-pack)
Device capacity
200+
VPN support
WireGuard, OpenVPN, PPTP, L2TP, Zerotier (server and client)
Security
WPA3
Management
Cudy app and web interface, parental controls
Nodes included
3

Package Contents

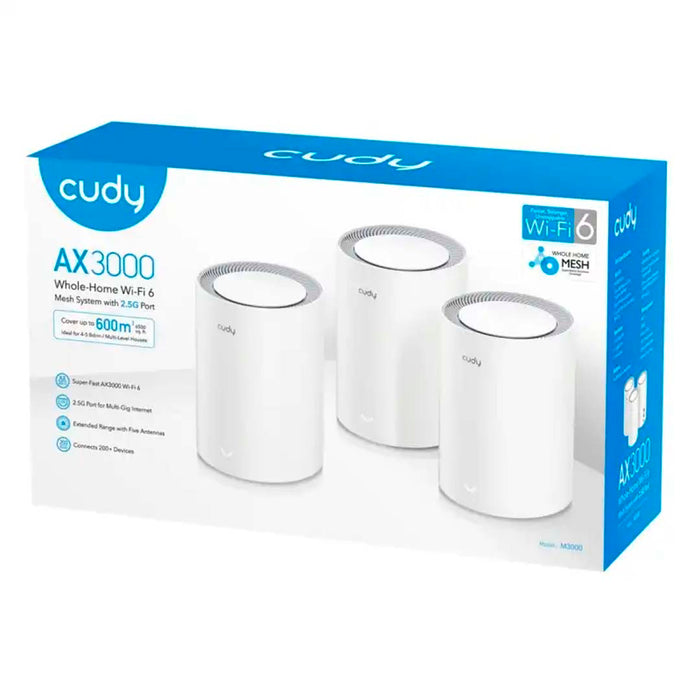

Cudy M3000 mesh node x3
Power adapter x3
Ethernet cable x1
Quick installation guide x1
