TP-Link Tapo C245D 2K Dual-Lens Pan/Tilt Indoor Security Camera | TAPO C245D

Product Description

Two lenses, one camera - wide view and telephoto detail at the same time

A single-lens pan/tilt camera makes you choose between seeing the whole room and seeing detail. The C245D fits two: a 121.8-degree wide-angle lens covering the room, and a 6 mm telephoto lens for detail at distance - both recording 2K. Add ten kinds of AI detection including glass breaking, barking and a baby crying, plus a starlight sensor for low light, and it covers far more than the usual motion alert.

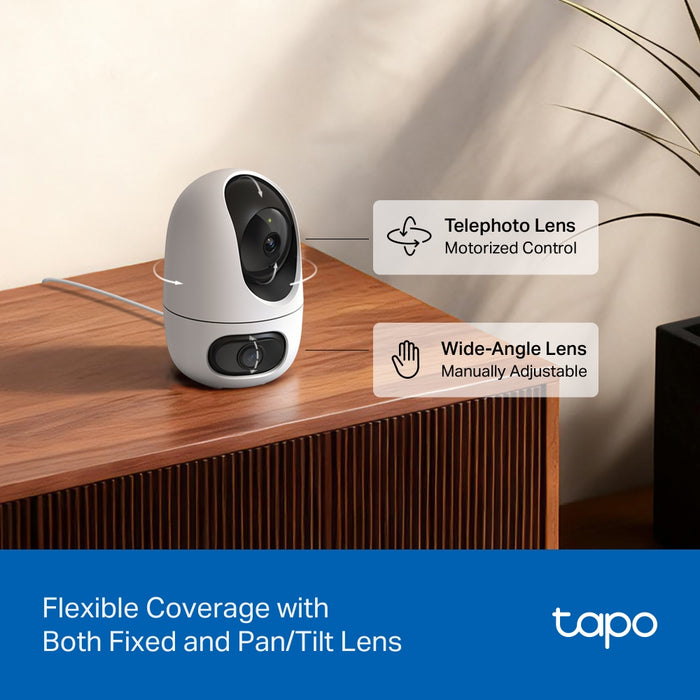

Two lenses working together
A 3.1 mm wide-angle lens covers 121.8 degrees diagonally for the whole room, while a 6.0 mm telephoto lens picks out detail further away. Both record at 2K, so you are not trading coverage for clarity.

Starlight sensor for low light
A 1/2.8-inch progressive scan CMOS starlight sensor gathers far more light than a standard sensor, holding usable detail in a dim room before the infrared has to cut in.

Ten kinds of AI detection
Beyond person, pet, vehicle and motion, it detects line-crossing, tampering, glass breaking, barking, a baby crying and a cat meowing - which turns it into a household monitor rather than just a camera.

Sound detection that matters
Glass-break detection is a genuine security feature, and baby-crying and pet-noise detection mean you get told about the things a camera pointed at an empty room would otherwise miss.

360-degree pan coverage
A 340-degree mechanical pan giving full 360-degree coverage plus 70 degrees of tilt, so one camera watches an entire room from a corner or a ceiling.

Two-way audio
A built-in microphone and speaker with noise cancellation let you talk to whoever is in the room - useful for pets, children and telling a delivery driver where to leave a parcel.

69dB siren
A built-in siren sounds when something is detected, enough to startle an intruder and alert anyone in the house.

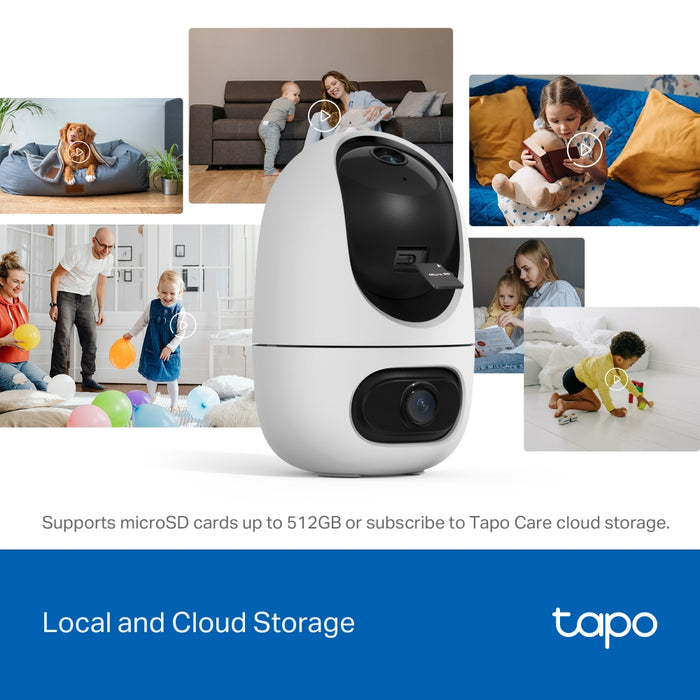

Local storage up to 512GB
Records to a microSD card up to 512 GB with no subscription, or to Tapo Care cloud if you prefer offsite copies.

RTSP and ONVIF
RTSP and ONVIF Profile S support means it works with third-party NVR software and home-automation systems rather than only the Tapo app.

Activity zones
Define the parts of the frame that matter, so a busy window or a passing hallway does not generate constant alerts.

Works with Alexa, Google and SmartThings
Voice integration with Amazon Alexa, Google Assistant and Samsung SmartThings for hands-free viewing on a smart display.

Infrared night vision to 12m
Six 850 nm infrared LEDs light the room out to 40 ft / 12 m in complete darkness.

Features

• Dual lens - 121.8-degree wide-angle plus 6 mm telephoto, both 2K
• 1/2.8-inch progressive scan CMOS starlight sensor
• 10 AI detection types including glass, bark, baby-cry and meow detection
• 360-degree pan coverage with 100-degree tilt coverage
• Infrared night vision to 40 ft / 12 m
• Two-way audio with noise cancellation
• 69 dB built-in siren
• microSD storage up to 512 GB, or Tapo Care cloud
• RTSP and ONVIF Profile S support
• Activity zones and WDR
• Works with Alexa, Google Assistant and SmartThings
• Indoor use only - no weather rating

Specifications

Model
Tapo C245D
Image Sensor
1/2.8-inch progressive scan CMOS starlight sensor
Wide-angle Lens
Focal length 3.1 mm, aperture F1.6, FOV 121.8 degrees diagonal / 104.3 horizontal / 57.9 vertical
Telephoto Lens
Focal length 6.0 mm, aperture F1.6, FOV 65 degrees diagonal / 56.5 horizontal / 30.6 vertical
Maximum Resolution
2K 3MP (2304 x 1296 px) on both lenses
Frame Rate
Up to 15 fps
Digital Zoom
10.8x on both lenses
Night Vision
Infrared to 40 ft / 12 m
Lighting
6x 850 nm IR LEDs
Pan/Tilt Range
Pan 340 degrees mechanical (360-degree coverage); tilt 70 degrees mechanical (100-degree coverage)
Image Enhancement
WDR
Audio
Built-in microphone and speaker, two-way audio with noise cancellation
Siren Volume
69 dB (measured at 100 cm)
AI Detection
Motion, person, pet, vehicle, line-crossing, tamper, glass, bark, baby-crying and meow detection
Activity Zones
Yes (motion / person / pet / vehicle detection only)
Local Storage
microSD card slot, up to 512 GB (card not included)
Cloud Storage
Tapo Care (subscription required)
Wi-Fi
IEEE 802.11 b/g/n, 2.4 GHz
Third-party Integration
RTSP and ONVIF (Profile S)
Security
128-bit AES with SSL/TLS, WPA/WPA2-PSK/WPA3-PSK
Power Source
9 V DC power adapter
Input Voltage
9.0 V, 0.85 A, DC jack
Power Cord Length
3 m
Smart Integration
Google Assistant, Amazon Alexa, Samsung SmartThings
Weather Resistance
None - indoor use only
Operating Temperature
0 to 40 degrees C
Storage Temperature
-20 to 60 degrees C
Operating Humidity
10% to 90% RH, non-condensing

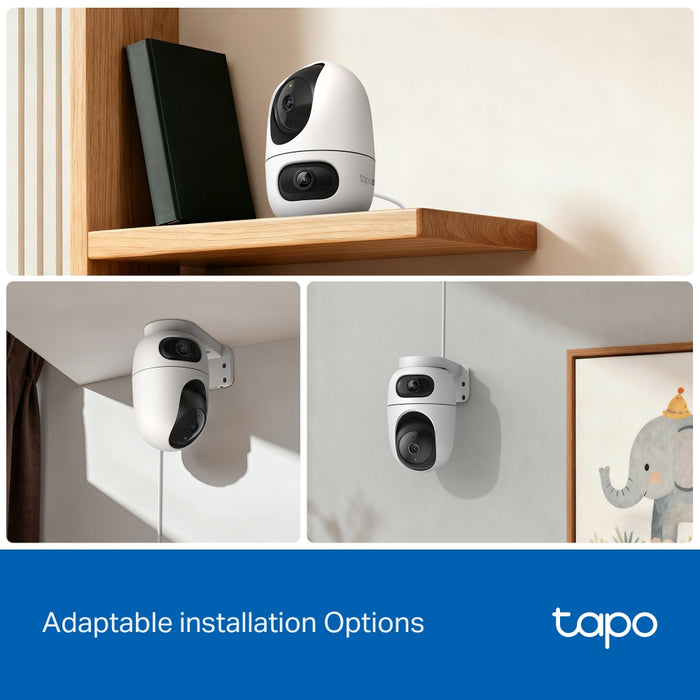

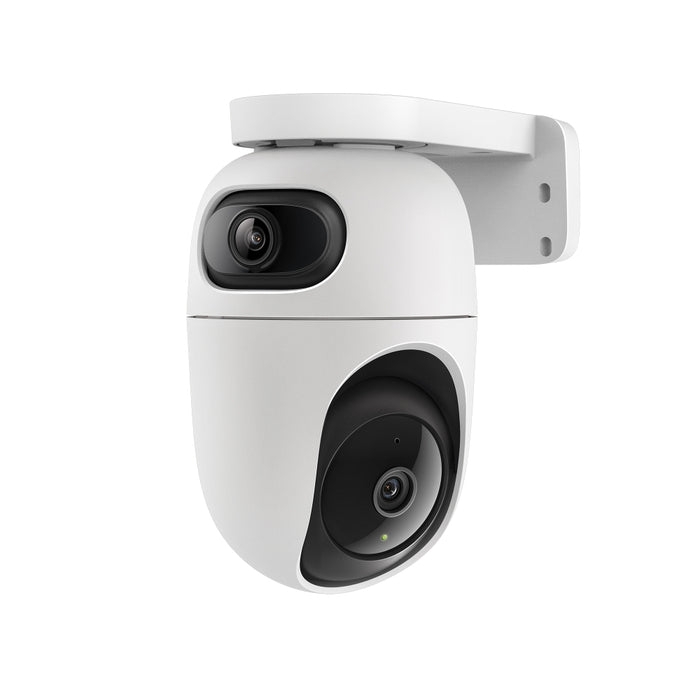

Mounting
Ceiling-mounted or wall-mounted
System Requirements
Tapo app - iOS 12.0 or higher, Android 7.0 or higher
Dimensions
82.2 x 82.2 x 126.2 mm
Certification
CE, JRF, RCM, NCC, IC, BSMI, KC, VCCI, NTRA, ONVIF
EAN
1210002619165

Package Contents
Tapo C245D camera x1
DC power adapter x1
Mounting template x1
Mounting bracket x1
Screws and anchors x4
Quick start guide x1
