Product Description
Lead Times May Apply
The entertainment you love
Technical Specifications
| Key Features | |
| Chassis | MT9602 |
| Digital TV or ATV | Digital TV |
| Display Technology | DLED |
| Resolution | 3840*2160 |
| Panel Specification | |
| Back Light Unit | D-LED |
| Resolution | 3840*2160 |
| Panel Brightness (cd/m2) | 230(±10%) |
| Contrast Ratio | 1200:1(typ.) |
| Response Time | 8ms(typ.) |
| Uniformity | ＞65%(typ.) |
| Colour gamut | 69%NTSC(typ.) |
| Viewing Angle (H/V) | 170°/170°(typ.) |
| Life Time | ＞20,000hrs (min) |
| Colour | 1.07B (8bit+FRC) |
| Picture | |
| Colour Temperature | Cool/Normal/Warm |
| Aspect Ratio | 16:9/4:3/Original/ Vertical Zoom/4-way Zoom |
| Picture Mode | Eco/Standard/Vivid/Cinema/Game/Sport |
| Energy Saving | OFF/MINI/MEDIUM/MAX /SCREEN OFF |
| Noise Reduction | Medium/ High/Low/ Auto/ off |
| SOUND | |
| Internal Speakers type | Box speakers |
| Internal Speaker Power | 2*10W |
| Sound mode | Cinema/Music/Standard/Clear/Game/Sport |
| TV Installation Type | Stand / Wall-mounted |
| Digital Sound out | PCM/DOLBY Digital PLUS/ HEAAC |
| Auto voice control | Yes |
| Surround | Yes |
| FUNCTION | |
| Operating System | Google Android11 |
| CPU | A53*4 |
| GPU | G52MC1 |
| Coprocessor | 4 core |
| DDR/Flash | DDR 2GB / eMMC 8GB |
| DTV | DVB-T/C/T2/S/S2 |
| Audio | MPEG1 layer 1/2,MPEG 2 layer 2, Dolby digital, Dolby digital plus. |
| Image Processing Technology | HDR / HLG |
| Colour System | PAL/ SECAM |
| Media Format | MPEG-4, H.264, H.265,VP9，Doiby digital，Dolby digital plus，Dolby MS11, Dolby MS12, MPEG1/2,VC-1,XVID |
| Air mouse RC | N.A |
| Voice Control | YES |
| Bluetooth | YES |
| Multi-screen | YES |
| WiFi | IEEE 802.11 b/g/n/AC 2.4G/5G |
| Software features | |
| ATV | PAL/SECAM |
| DTV | DVB-T/C/T2/S/S2 |
| OSD | English, Spanish, French, Portuguese etc. |
| Apps | Netflix,YouTube，Prime video，Densiy+,Airplay，Browser,LG Store, Media, etc. |
| Browser | Native browser |
| Favourite Programs | Yes |
| Programs Searching | Yes |
| Sleep Timer | off /10/20/30/60/90/120/180/240 min |
| Software upgrading | USB / OTA |
| TERMINALS | |
| HDMI | 4 |
| USB | 2 |
| AV in | 1*RCA |
| Earphone | 1 |
| PC Audio | N/A |
| RF | 2（for DVB-S2) |
| Component(Y/Pb/Pr) | N/A |
| VGA | N/A |
| SPDIF | OPTICAL*1 |
| SCART | N/A |
| CI | Yes |
| BASIC Info. | |
| Power Supply | AC100-240V~ 50/60HZ |
| Power Consumption-TV on | ≤75W |
| Power Consumption-Standby | ≤0.5W |
| Certification | CE / ERP |
| ACCESSORIES | |
| User Guide | Yes |
| Base Stand | Plastic Stand |

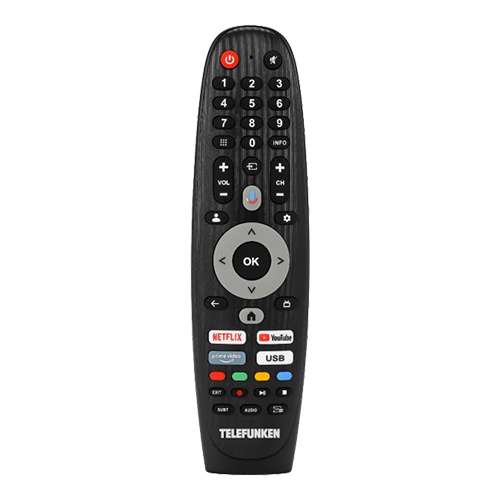

| Remote control | BT remote |
| Others | Battery |
| Dimension for Main Body (L*H*W) (mm) | |
| Unpackaged With Base Stand (mm) | 962*608*189mm |
| Unpackaged Without Base Stand | 962*560*63mm |
| Packaged Dimension (L*H*W) | 1022X124X610mm |
| Net Weight (Kg) | 7KG |
| Gross Weight (Kg) | 9.5KG |
