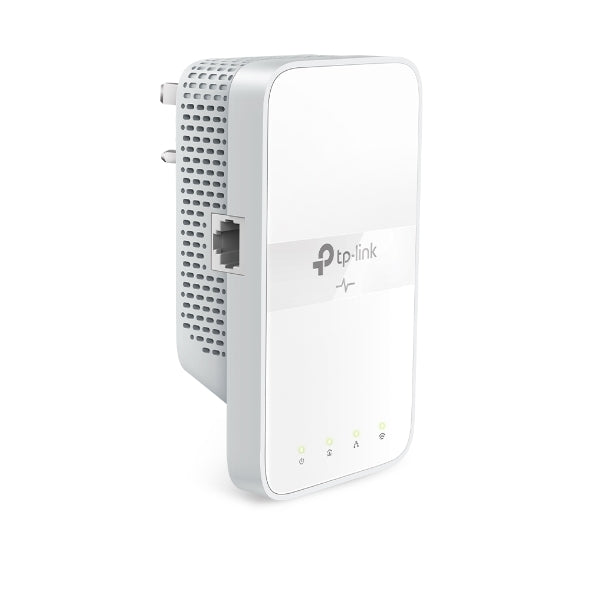

TP-LINK AV1000 Powerline Wi-Fi Extender - White | TL-WPA7617
Cheaper elsewhere? Our Pricematch Promise
TP-LINK AV1000 Powerline Wi-Fi Extender - White | TL-WPA7617TP-LINK AV1000 Powerline Wi-Fi Extender - White | TL-WPA7617
The Homeplug AV2 compliant powerline TL-WPA7617KIT extends your network with fast wired speeds with Wi-Fi speeds up to 300 Mbps on 2.4GHz and 867 Mbps on 5GHz. It is perfect for smart TVs, game consoles, HD video streaming, or lag-free gaming. Set up your powerline network with no configuration required to start enjoying fast, seamless wired and wireless connection in minutes.
The terms “AV1000” and “1000Mbps” are derived from applicable specifications and refer to the theoretical maximum physical-layer data transfer rate. Those terms are used on this product solely to indicate its compatibility with other “AV1000” or “1000Mbps” powerline devices. Actual data speeds vary and may be limited by the product’s Ethernet port and other network conditions such as data traffic, electrical noise, and wiring issues. For better performance, powerline devices should be deployed on the same electrical circuit and rated for the same HomePlug standard. A minimum of two powerline devices are required to establish a powerline connection. If you are uncertain about your network conditions, you should consult an IT professional to assist in selecting a networking product.
Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions.
- Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters
- Dual band 802.11ac Wi-Fi - AC1200 dual band Wi-Fi (867Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home
- Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move
- Gigabit Ethernet Port - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
- Plug, Pair and Play - Quickly set up a secured Powerline network
Other Technical Details
|Item model number||TL-WPA7617 KIT|
|Item Weight||1.4 pounds|
|Product Dimensions||9.8 x 7.6 x 4 inches|
|Item Dimensions LxWxH||9.8 x 7.6 x 4 inches|
|Country of Origin||Vietnam|
|Date First Available||November 23, 2021|
|Standards and Protocols||HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
|Interface||TL-WPA7617: 1 Ethernet Port;
TL-PA7017P: 1 Ethernet Port
|Button||Pair, Reset, Wi-Fi Clone, LED On/Off|
|Power Consumption||TL-WPA7617: Maximum: 11W, Typical: 6.5W
TL-PA7017P: Maximum: 2.9W, Typical: 2.6W
|LED Indicator||Power, Powerline, Ethernet, Wi-Fi|
|Dimensions ( W x D x H )||TL-WPA7617: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
TL-PA7017P: 2.3 × 1.7 × 3.7 in. (58 × 42 × 95 mm)
|Range||Up to 300 meters/1000 feet over existing electrical wiring|
|Compatibility||Compatible with all HomePlug AV & AV2 standard powerline adapters|
|Transmission Speeds||Powerline: Up to 1000 Mbps
Ethernet: 10/100/1000 Mbps
|Wireless Speeds||Up to 1200 Mbps|
|Wireless Security||Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions|
|Management||tpPLC: Scan the QR code to download TP-Link tpPLC App.
Or download new tpPLC Utility on PCs: www.tp-link.com.
|Modulation Technology||OFDM (PLC)|
|Encryption||Powerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
|Package Contents||AV1000 Powerline Wi-Fi Kit: TL-WPA7617 & TL-PA7017P
Ethernet Cable × 2
Quick Installation Guide
|System Requirements||Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux|
|Environment||Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
Better Life with Ultra-fast Wi-Fi Extender Using Existing Electrical System
AV1000 Gigabit Passthrough Powerline ac Wi-Fi Kit
Easily Extend Fast,
Reliable WiFi to Every Room
The powerline products TL-WPA7617 KIT transforms your home’s existing electrical circuit into a ultra-fast-speed network, and brings wired and wireless networks to anywhere there is a power outlet.
- > No need for new wires or drilling
- > Network passes through walls and floors
- > Compatible with any WiFi routers or other powerline products
- > Expand coverage by adding more extenders
Note: Powerline products must be deployed in sets of two or more and be connected to the same electrical circuit.
- Ethernet Cable
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7617 KIT ensures stable and high-speed WiFi, and also wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Gigabit Ethernet for Reliable Connections
One Gigabit Ethernet port provides warp-speed wired connections for 4K HD streaming, lag-free gaming, and more. Two Ethernet cables are included in the box.
- Smart TV
AC 1200 WiFi for Ultra-fast Internet Connections
AC1200 dual band WiFi (867 Mbps on 5GHz & 300 Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home.
Don’t Worry about Occupying an Outlet
Simply plug into your TL-PA7017P as though it were a normal wall socket. Feel free to plug in PCs, smart TVs, or other wired appliances without any performance differences.
Note: The built-in noise filter helps prevent electrical signal noise from affecting your powerline performance.
Plug and Play,
No Configuration Required
Ditch the complicated setup process for good. Get started with powerline in just two steps:
>Step1 : connect TL-PA7017P to your router.
>Step2 : plug in TL-WPA7617 wherever you need wired and wireless internet service.
Pair for more security
Press the “Pair” button on each adapter to create a more secure network.
One-Touch Wi-Fi Configuration
Instantly copies the wireless network name (SSID) and password from your router by pressing the WiFi Clone button. Besides, any changes made to the WiFi settings of any powerline adapter will be automatically applied across the entire Powerline network.
Aut-Sync Wi-Fi Settings
Password: tplink1234WI-FI Name: Home
Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.
- View real-time powerline speed
- LED control (also controlled by LED On/Off button)
- Guest network
*1. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
*2. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*3. Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline being located in a separate circuit.
