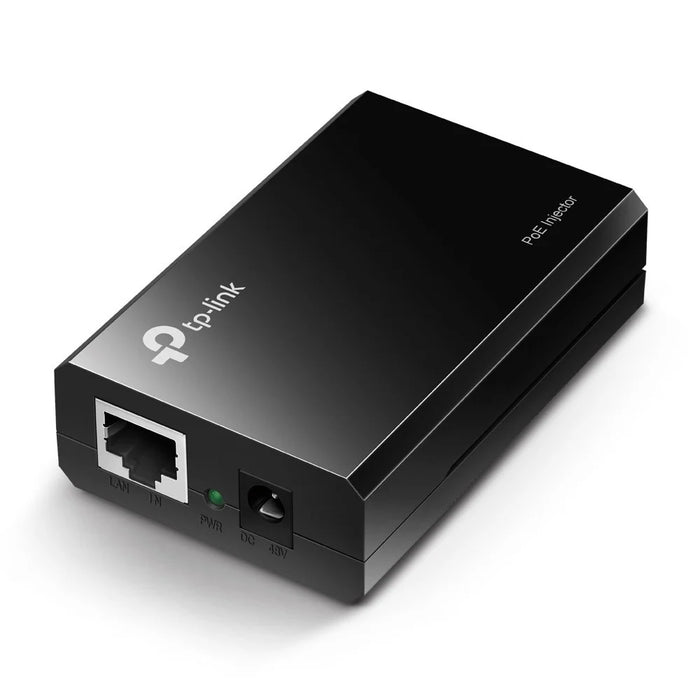

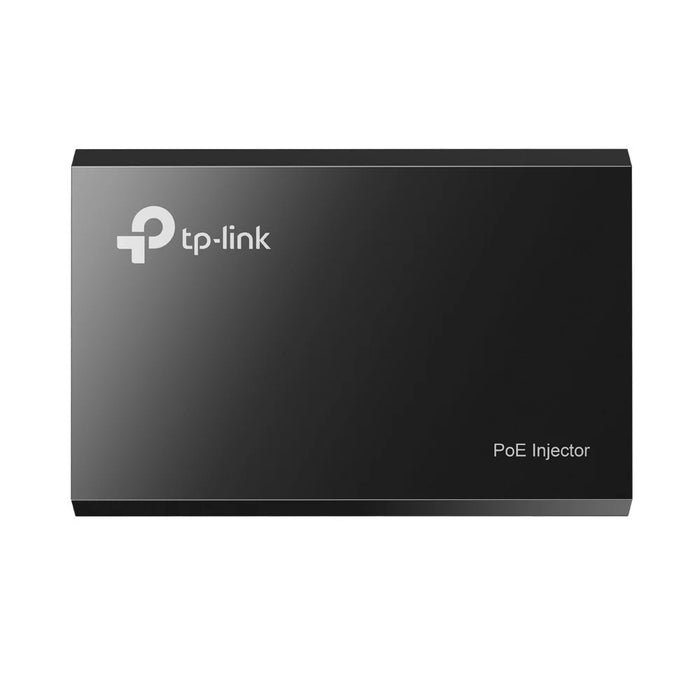

TP-Link Gigabit PoE Injector 802.3af 15.4W - Black | TLPOE150S

Product Description

Power a camera or access point down the network cable - no socket needed

The awkward part of mounting a security camera or a ceiling access point is rarely the network - it is finding a power socket. A PoE injector solves that by sending power down the same Ethernet cable as the data, up to 100 metres away. This one is fully 802.3af compliant, works with any compliant device, and needs no configuration whatsoever: data in one port, power and data out the other.

One cable for power and data
Power and network travel down a single Ethernet run, so a camera on a gable end or an access point in a ceiling void needs no socket and no electrician.

Up to 100 metres
Delivers power up to 100 m over standard Ethernet cable - the full length of a normal structured cabling run, so the injector can sit in the comms cupboard.

Full gigabit throughput
Both the DATA IN and PWR+DATA OUT ports are 10/100/1000 Mbps with auto-negotiation, so adding PoE does not cost you speed the way older 100 Mbps injectors did.

Automatic power detection
It determines what the connected device actually needs and supplies accordingly - which is also what protects non-PoE equipment plugged in by mistake.

802.3af compliant
Fully compliant with IEEE 802.3af, so it works with any compliant powered device - IP cameras, access points, VoIP phones - rather than one brand's proprietary scheme.

Up to 15.4W output
15.4 W is the full 802.3af class budget, comfortably covering the typical IP camera or access point.

Nothing to configure
There is no software, no web interface and no switches. Plug it in and it works, which is exactly what you want from a component hidden in a cupboard.

Wall mountable
At 110 x 57 x 35.7 mm with a power LED, it mounts on a wall or sits in a rack cupboard out of the way.

Features

• Sends power and data over a single Ethernet cable
• IEEE 802.3af compliant - works with any compliant device
• Up to 15.4 W power output
• Delivers power up to 100 metres
• Gigabit 10/100/1000 Mbps on both ports with auto-negotiation
• Automatically determines the required power
• Plug and play - no configuration
• Wall mountable with power LED
• External power adapter included

Specifications

Model
TL-POE150S / POE150S
Type
Gigabit PoE injector
Interface
1x 10/100/1000 Mbps auto-negotiation RJ45 DATA IN port; 1x 10/100/1000 Mbps auto-negotiation RJ45 PWR+DATA OUT port
PoE Standard
IEEE 802.3af compliant
Maximum Power Output
15.4 W
Power Supply
48 V / 0.35 A external adapter
Maximum Distance
100 m
Power Detection
Automatic - determines required power
LED
PWR
Dimensions
110 x 57 x 35.7 mm (4.33 x 2.24 x 1.41 in)
Operating Temperature
-5 to 40 degrees C
Storage Temperature
-40 to 70 degrees C
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 90% non-condensing
Certification
CE, FCC, BSMI
Colour
Black
EAN
6935364030506

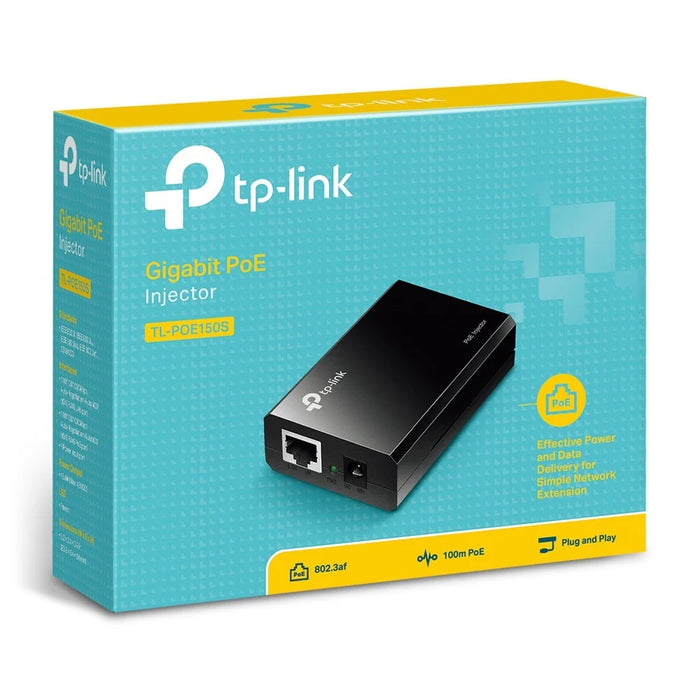

Package Contents
PoE injector x1
Power adapter x1
Installation guide x1
