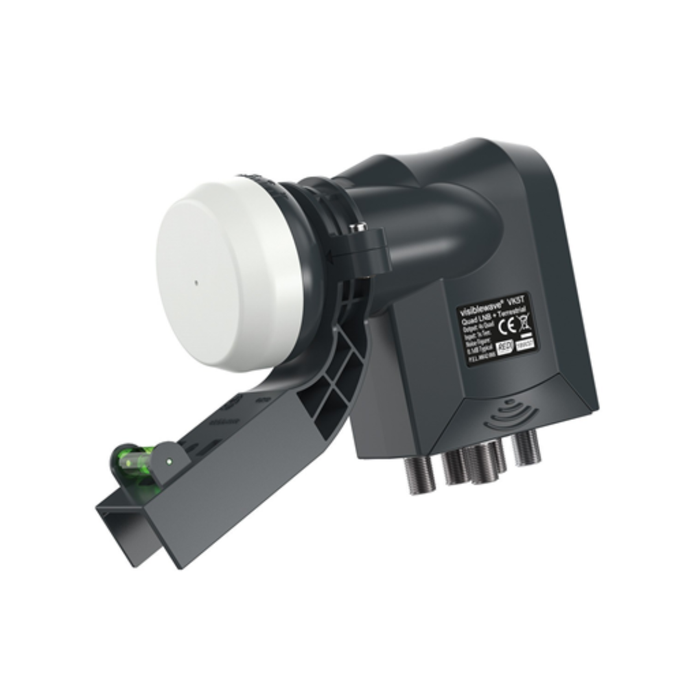

Labgear Quad LNB + Terrestrial (4 Out, 1 In) | VK5T

Product Description

• Describe by some in the trade as a mini-multiswitch

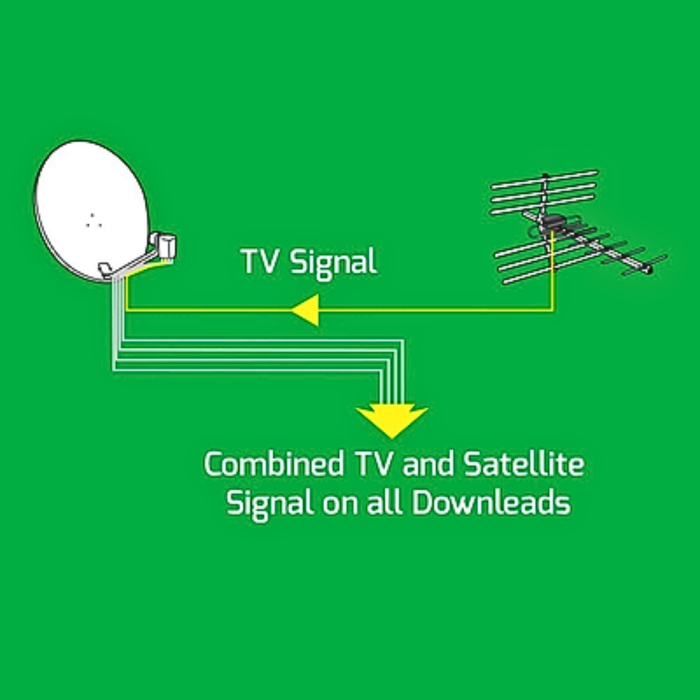

• Combines terrestrial and satellite signals onto each downlead
• Ideal for both FreeSatTM or SkyHDTM and FreeViewTM reception
• Recommended for use with Labgear high-gain TV aerial
• Supplied with bracket to fit Mk4 dishes bracket incorporates level

Product Specification

• Packaging Length (cm): 17
• Packaging Width (cm): 11
• Packaging Height (cm): 8
• Product & Packaging Weight (grams): 324
• Product Weight (grams): 273

Technical Specification

Quad Ku Band
Input Frequency
low band: 10.7~11.7GHz
high band: 11.7~12.75GHz
Output Frequency . Output 1, 2, 3, 4
low band: 950~1950MHz
high band: 1100~2150MHz
Output 1,2,3,4 VSWR (950 - 2150 MHz) Ratio 2.0:1 (typ.), 2.5:1 (max.)
L.O. Frequencies low band 9.75GHz (typ.)
high band 10.6GHz (typ.)
L.O. Stability 0.5 ~1.0MHz @ 25ºC
1.0 ~2.0MHz @ -40ºC ~ 70ºC
L.O. Phase Noise
-65dBc/Hz @ 1kHz (typ.)
-83dBc/Hz @ 10kHz (typ.)
-95dBc/Hz @ 100kHz (typ.)
LNB Gain 25dB @ -40ºC ~ 70ºC
Ku LNBF Conversion Gain 55~67dB @ -40ºC~70ºC
Gain Flatness Over Full Band 4dB P-P (max.)
Gain Flatness Over 26MHz
Gain Flatness Over 300MHz
±0.5dB P-P (typ.)
±2dB P-P (typ.)
Noise Figure 0.3dB (typ.), 1.0dB (max.)
Cross Polar Isolation 18dB (min.)
Image Rejection 40dB (min)
Current Consumption 200mA (typ.), 240mA (max.)
Operating Voltage &
Band Switching
Vertical 11.5~14VDC
Horizontal 16~20VDC
Low-Band 0 KHz
High-Band 18~26KHz
Operating Temp. -40ºC ~ +60ºC
RED Compliance EN 303 372-1
Terrestrial
Frequency Range 40 ~ 790MHz
Insertion Loss 8 ~11dB, 9dB (typ.)
